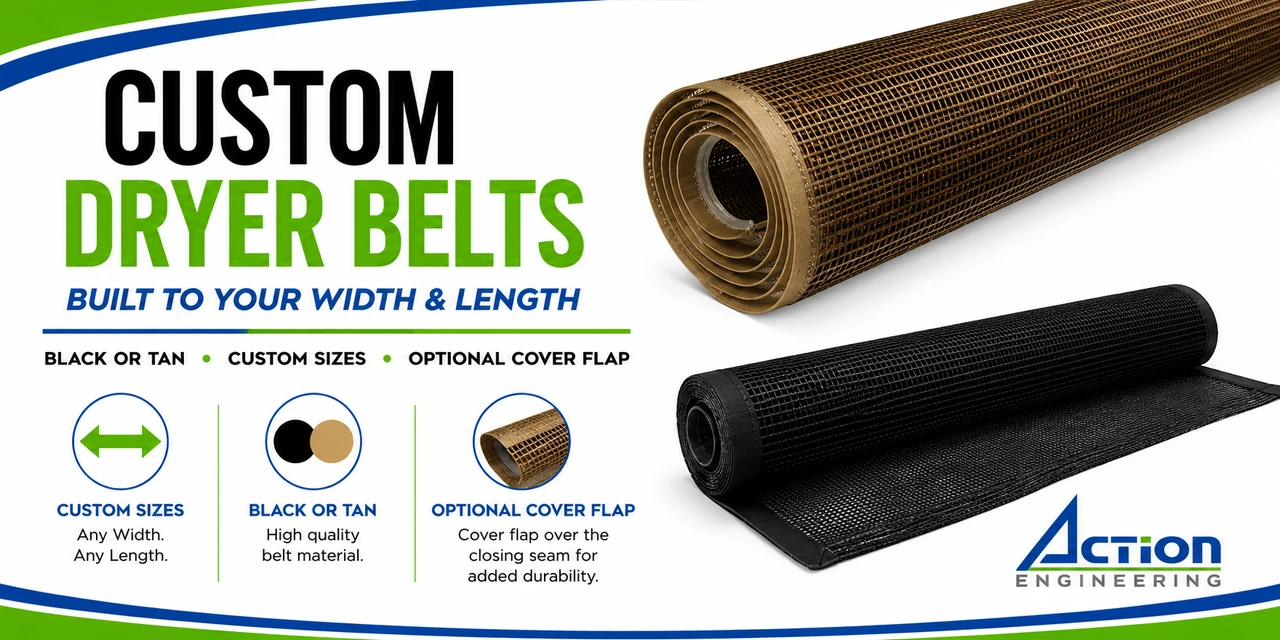

Screen Printing Dryer Belt - Custom Quote

Dryer Belts for Use with All Conveyor Dryers

Our dryer belts are engineered to provide exceptional strength and stability for long-lasting performance. Designed for use with all conveyor dryers, our belts offer a range of features to optimize your drying process. Here are the key highlights:

• Chemically Inert and Durable: The curing process of our dryer belts utilizes fluorocarbon resins, making them chemically inert and highly durable. This ensures excellent resistance to chemical reactions and enhances longevity.
• Woven Glass Substrate: Each belt is reinforced with a woven glass substrate, providing exceptional strength and dimensional stability. This construction ensures reliable performance even in demanding operating conditions.
• Non-Stick Surface: Our dryer belts feature a non-stick surface, minimizing ink transfer and ensuring smooth material movement throughout the drying process.
• Wide Operating Temperature Range: With a temperature range of -100°F to 550°F, our dryer belts are suitable for various heating and drying applications, ensuring optimal performance in different environments.
• 70% Open Area: The belts have a 70% open area, allowing for efficient airflow and heat transfer, promoting effective drying and curing of printed materials.

Customization and Ordering:

• Requesting a Quote: To request a quote, provide us with the full measurements of the belt, ensuring accurate customization. If the belt is still on the machine, use a non-stretchy string to measure it. During the checkout process, enter the necessary information. Rest assured, you will not be charged for quote requests. Upon receiving your belt measurements, we will promptly provide you with a quote, production time, and estimated shipping time.
• PLEASE DO NOT SUBMIT MULTIPLE REQUESTS. PLEASE DO NOT SUBMIT PARTIAL MEASUREMENTS.  WE CANNOT PROCESS QUOTES BASED ON FEED/HEAT CHAMBER/OUT FEED MEASUREMENTS.
• Widths and Lengths: We offer dryer belts in widths up to 84 inches, ensuring compatibility with a wide range of conveyor dryers. Additionally, we provide unlimited length options to meet your specific equipment requirements.
• Measuring: The most reliable method is measuring the belt off the dryer. However, we know this isn't always possible. The second best method is to run a non-stretch string the entire length of the belt then measure the string. Basing measurements off the length of the dryer is not recommended. Many forget to include the in/outfeed, and roller height. Not being certain of your belt measurements can result in further time and expense to either have the belt cut down a bit, or having to order an extension.
• Additional Options: We offer optional features such as a flap over the zipper for added convenience and customization. Additionally, you can choose between black or tan color options for your dryer belts.

*Please note that our dryer belts do not include the guide option. If a guide is required, it is proprietary to M&R and must be ordered through them.*

For expedited service, call us at 770-717-1000 or email us at inquiries@actionengineering.com.

To ensure accurate quotes, please avoid submitting multiple requests or providing partial measurements.
