Front + Tag Heat Press Platen

Front + Tag Heat Press Platen

Print the front of the shirt and the neck label in one setup

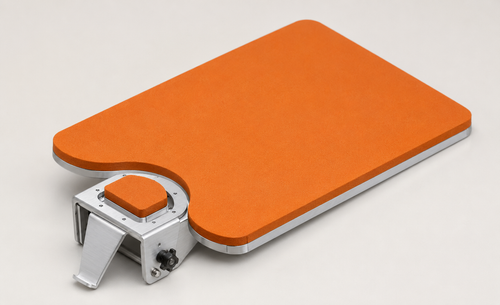

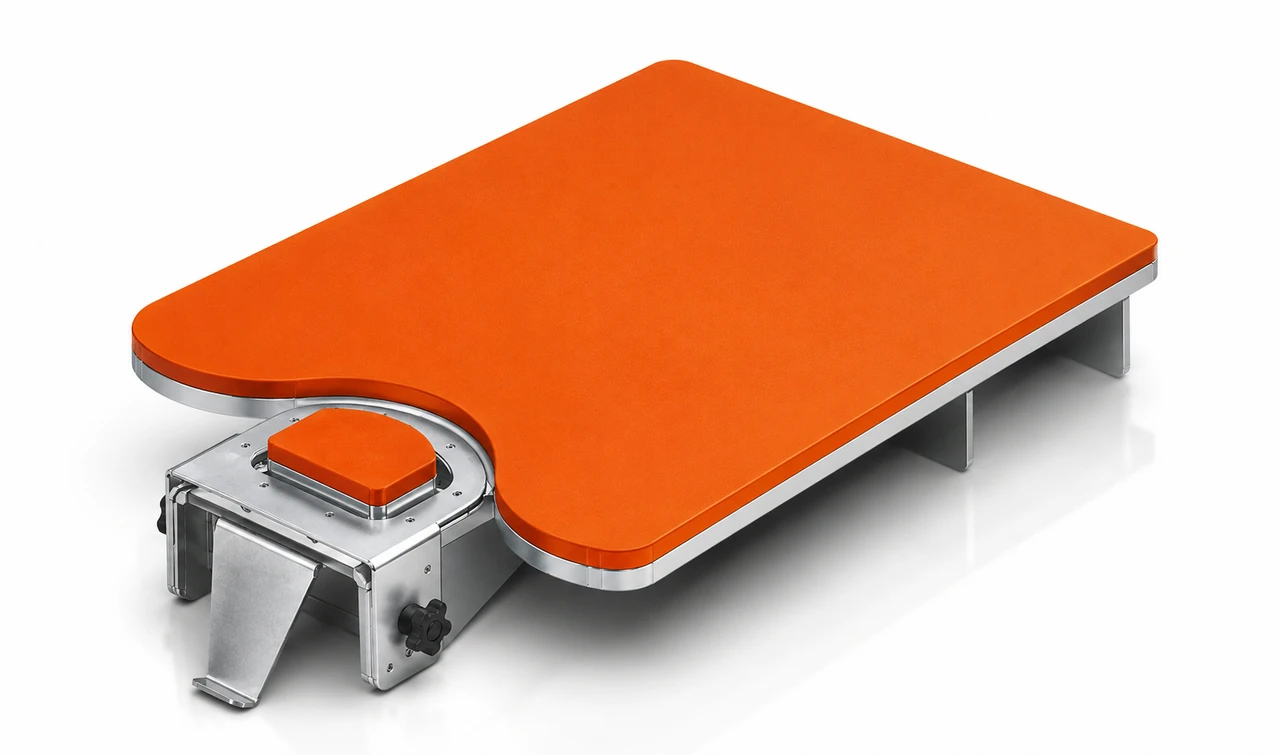

The Action Engineering Front + Tag Heat Press Platen is designed to make heat pressing the front of a T-shirt and the inside neck label faster, easier, and more accurate.

The innovative dual-area design allows the operator to first load and securely position the neck label area of the shirt. Once the collar is properly aligned and locked into position, the body of the shirt can be pulled straight, centered, and smoothed across the main platen surface.

This eliminates the need to remove, reposition, and reload the garment when applying a front transfer and neck label. The result is faster production, improved consistency, and accurate placement from shirt to shirt.

The generous 16" x 18.5" main printing surface provides plenty of room for standard and oversized front graphics, while the integrated 2.5" x 3.5" neck label area provides a dedicated surface for applying inside neck transfers.

With 15.75" from the top of the platen to the neck area, the design provides excellent garment positioning and accommodates a wide range of shirt styles and sizes.

Features & Benefits

• Print the shirt front and neck label in one setup
• Lock the neck area into position first, then straighten, center, and smooth the shirt body
• Helps maintain accurate and consistent front graphic placement
• Reduces garment handling and repositioning between applications
• Provides a smooth, stable printing surface for both transfers
• Works with men’s and ladies’ cut T-shirts
• Accommodates a wide range of garment sizes
• Ideal for DTF transfers, heat transfer vinyl, screen printed transfers, and other heat-applied graphics
• Designed to improve production speed, consistency, and operator efficiency

Dimensions

• Main Platen: 16" W x 18.5" L
• Neck Label Area: 3" x 5"
• Main Platen to Neck Area: 15.75"
